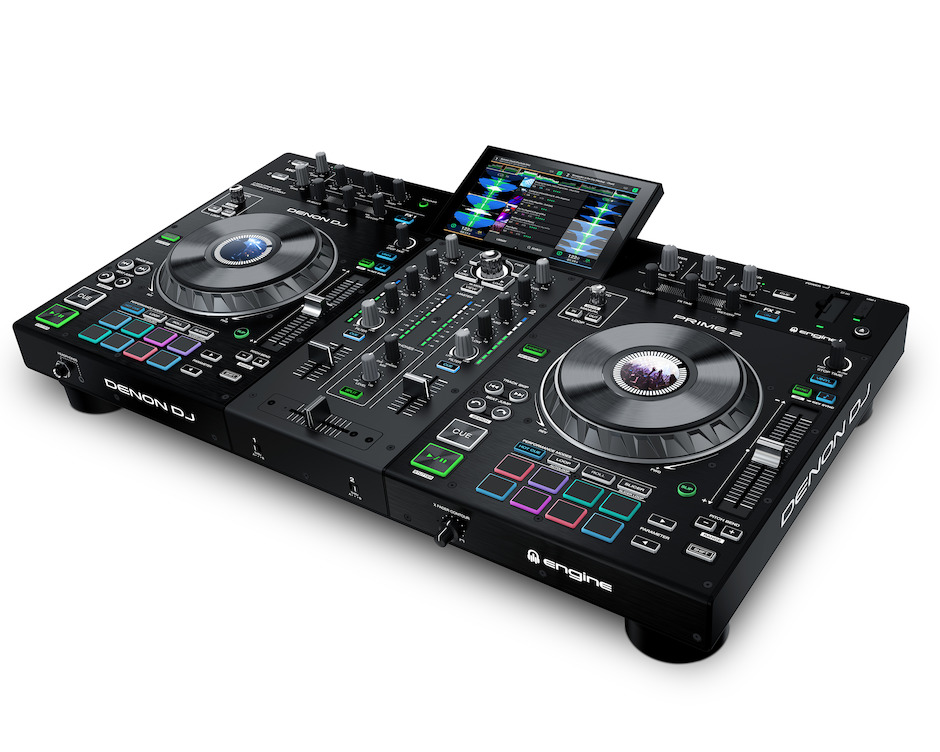

Denon DJ Prime 2

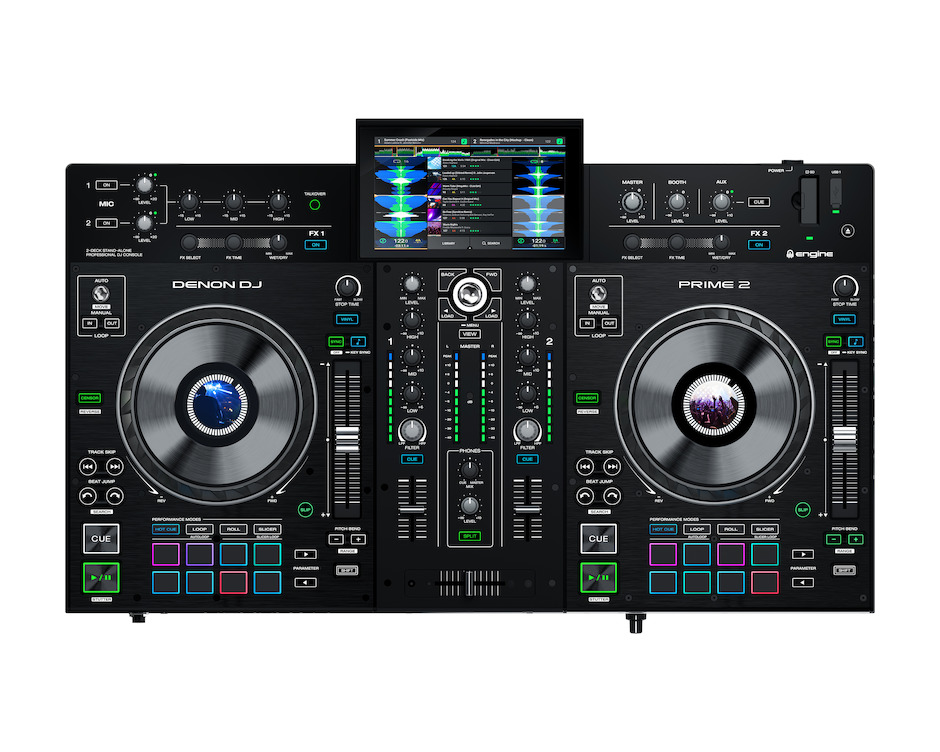

Touchscreen Interface

PRIME 2's, 7" multitouch, multi-gesture display gives DJs fingertip control of music library navigation, search and track load. Large, color waveforms and essential DJ workflow information is shown as well as access to PRIME 2 preferences and performance customization.

Standalone Digital Media + Streaming

Multiple (USB/SD) media sources and a built-in SATA drive bay give DJs unlimited music access plus onboard recording. PRIME 2 is also enabled for WiFi internet connectivity, enabling streaming playback of Beatport, Beatsource, Soundcloud and TIDAL.

Expressive Workflow and Control

Powered by Engine OS software, PRIME 2 is the DJ's essential Pro/Mobile workhorse. Comprehensive performance control is ensured via capacitive touch jog wheels (with color displays), powerful EQ, FX and audio manipulation.

HD Touchscreen

7", HD multi-touch display for waveform views, music library navigation, track search and load.

Jog Wheels with Color Display

6" Capacitive-touch jog-wheels with HD display for loop info, track artwork & custom logo

Multifunction Performance Pads

8 ultra-responsive trigger pads for hotcue juggling, looping techniques, beat rolls and slicer.

Dual Mics + Flexible Monitoring

No sacrifice of line faders with 2 independent mic channels plus multi-option headphone monitoring.

Powerful Mix & Audio Control

Pristine 24bit/48k audio quality with 2-channel mixer, 3-band EQ and filter controls. Timestretch and Key Shift functions add more creativity into the mix.

Specifications

Audio

• • Frequency Response: 20 Hz - 20 kHz (+- 1 dB)
  • Dynamic Range: > 112 dB (A-weighted)
  • Signal-to-Noise Ratio: > 92 dB (A-weighted)
  • Channel Separation: < -85 dB (1 kHz, unity)
  • Headroom:
    • Aux/Line: > 15 dB
    • Mic Input: > 20 dB
    • Outputs: > 20 dB
  • T.H.D.
    • Aux/Line: < 0.01% (1 kHz, unity)
    • Microphone: < 0.02% (1 kHz, unity)
  • Analog Input
    • Aux/Line:
      • +15 dBV (maximum)
      • 0 dBV (unity)
    • Microphone:
      • -40 dBu (unity)
      • -60 dBu (minimum)
  • Analog Output
    • Master, Balanced:
      • +24 dBu (maximum)
      • +4 dBu (unity)
    • Master, Unbalanced:
      • +20 dBu (maximum)
      • 0 dBu (unity)
    • Booth:
      • +24 dBu (maximum)
      • +4 dBu (unity)
    • Headphone Output: < 150 mW @ 40 Ohms

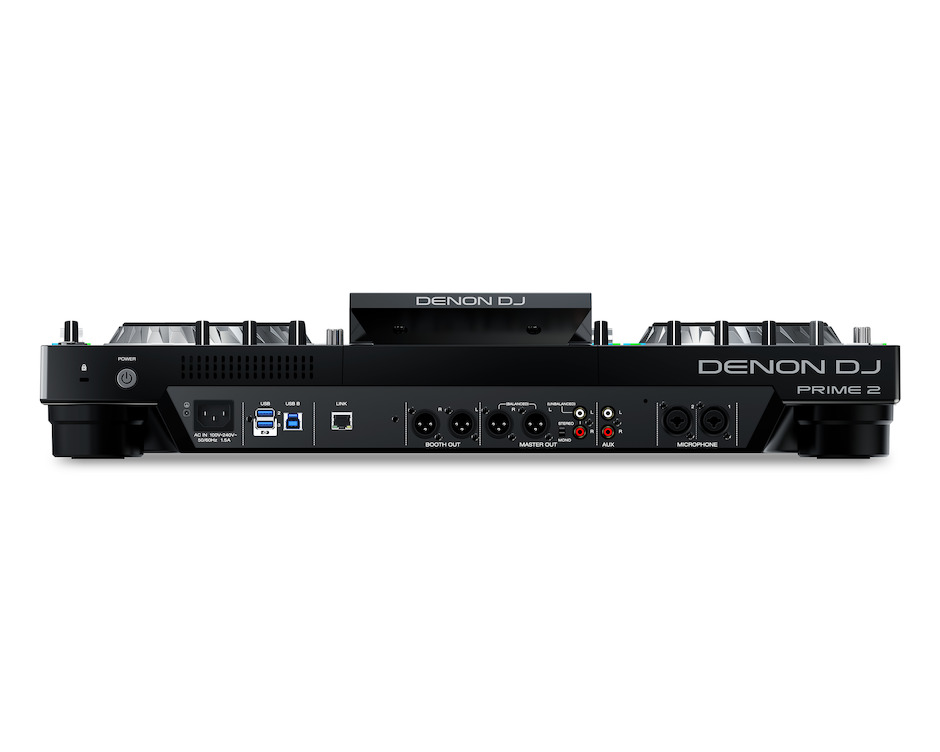

  • Connections
    • (2) XLR outputs (master left/right, balanced)
    • (1) RCA output pair (master left/right, unbalanced)
    • (2) XLR outputs (booth left/right, balanced)

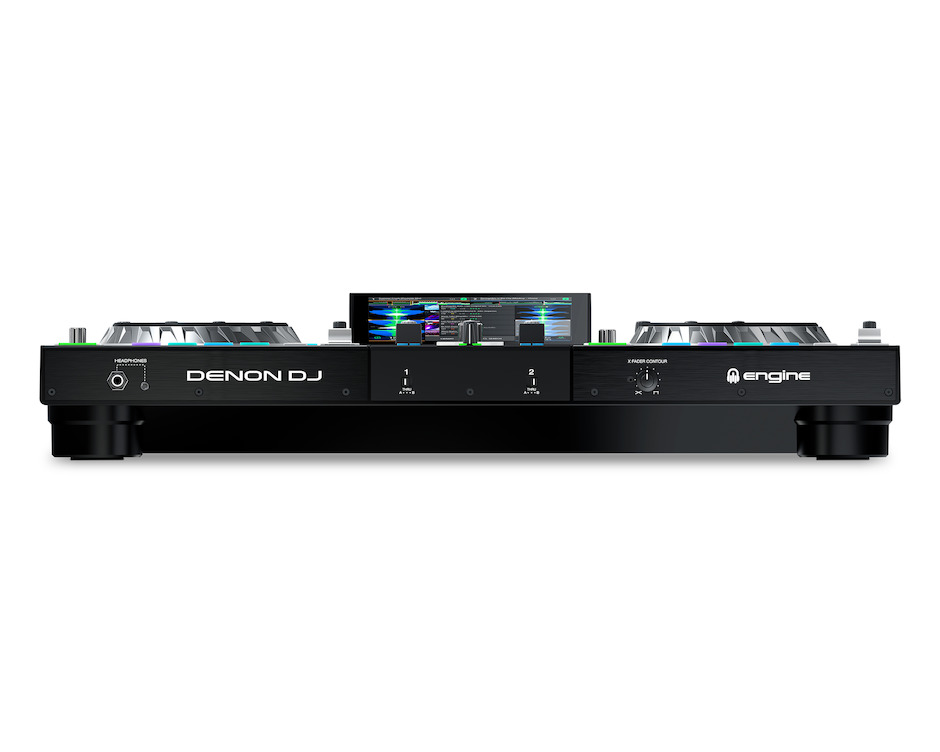

    • (1) 1/4" (6.35mm) stereo output (headphones)
    • (1) 1/8" (3.5mm) stereo output (headphones)
    • (1) RCA input pair (line-level, unbalanced)
    • (2) XLR + 1/4" (6.35mm) inputs
    • (3) USB ports (for USB drives. Port 3 with 5V, 1A)
    • (1) USB port (to computer)
    • (1) SD card slot
    • (1) Ethernet port
    • (1) IEC power cable input
    • (1) 2.5" SATA HD bay
  • Power
    • Connection: IEC
    • Input Voltage: 100–240 VAC, 50/60 Hz
    • Consumption:
      • 34W (with smartphone charging from USB 3 port)
      • 32W (without smartphone charging)
  • Dimensions (Width x Depth x Height)
    • 644.8mm x 410.1mm x 120.2mm
• Weight (Without USB and Power Cable)

  • 7.2 kg
