Neumann KH 80 DSP

The Number 1 For 0 Compromises

The art of neutral studio sound – now digitally remastered

We have calculated every soundwave. We have perfected low-distortion materials. We have optimized the drivers with our years of experience and hand-selected every component. The system's perfection comes from its digital heart: In only 2 milliseconds, our DSP engine converts every sound to a reference quality in every environment – so no detail gets lost on the way.

The perfect sound of mathematics at work

We know every nuance, every surface and every angle of the KH 80 DSP. It sounds so pure, because we are directing every soundwave so precisely.

The KH 80 DSP’s design is based on computer simulations that calculate with an accuracy that others do not match. Our Mathematical Modeled Dispersion Waveguide (MMD™) provides our studio series with a solid base for precise sound direction that stays absolutely unique. Doing your sums properly has never sounded so good.

The biggest variable is your room.

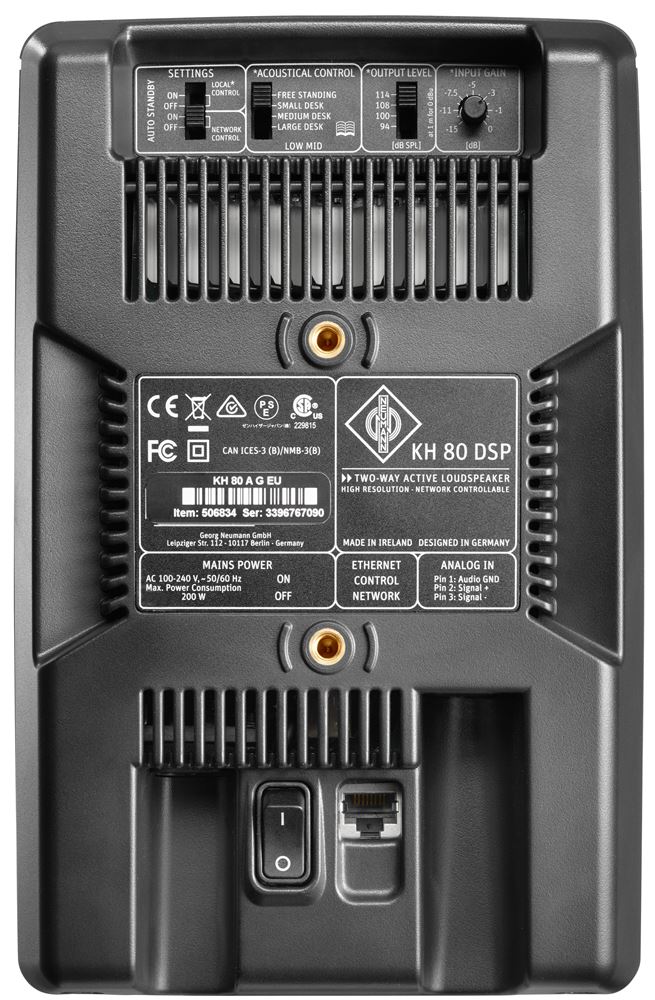

It might be a project studio, an outside broadcast van, or just a corner of a building: The room defines the sound. Surfaces and corners in the room cause interference, diffraction, reflection, and refraction: all are forms of distortion. For a really true sound, you normally need expensive equipment plus plenty of time and expertise to align it correctly – or smart algorithms. An easy adjustment to the monitor position (free standing, small/medium/large desk) is possible via the rear "Acoustical Control" switch.

The optional, freely available Neumann.Control iPad® app goes several steps further. It adapts the KH 80 DSP to the individual room situation, delivering quality way above the price-tag. And the best part: the patented "Guided Alignment" means that you don't have to be an expert to adapt the system to your environment.

Spesifikasjoner:

• -6 dB free field frequency response: 53 Hz … 22 kHz, ± 6 dB
• -3 dB free field frequency response: 57 Hz … 21 kHz, ± 3 dB
• Pass band free field frequency response: 59 Hz … 20 kHz, ± 2 dB
• Self-generated noise (with input gain set to 100 dB for 0 dBu): < 20 dB(A) bei 10 cm
• Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz): 102,8 / 108,8 dB SPL
• Input: XLR, analog electronically balanced
• Controller design: Digital, active
• Crossover frequency, slopes: 1.8 kHz, 48 dB/oct, 8th order
• Bass amplifier, cont.(peak) output power*: 150 W (130 W)
• Treble amplifier, cont.(peak) output power: 55 W (70 W)
• Mains Power Supply, voltage; frequency: 100-240 V~; 50/60 Hz, with standby
• Drivers: 100 mm (4"), 25 mm (1"), with integrated black metal grilles
• Mounting points: 2 x M6 threaded inserts with 70 mm spacing on back panel
• Product dimensions (height x width x depth), mm (inches): 233 x 154 x 194 mm (9 1/8" x 6" x 8 5/8")
• Product weight: 3.5 kg (7 lbs 11 oz)
