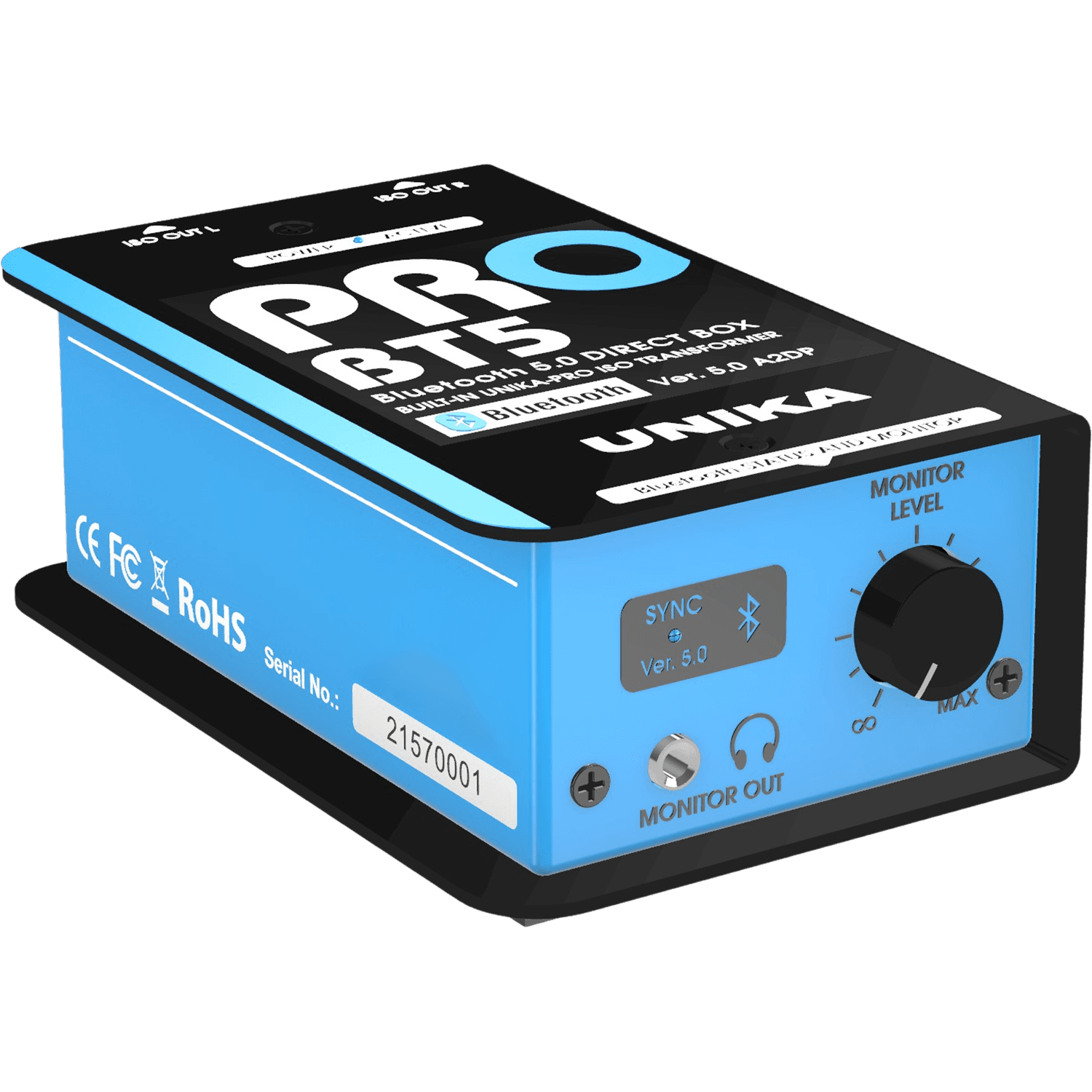

UNiKA PRO-BT5 Bluetooth DI-Boks

UNiKA PRO-BT5 is a professional Passive DI box designed to convert Bluetooth wireless digital audio signals like those from mobile phones, tablets, laptops, computers and other digital audio sources to low impedance balanced analogue signals like those required by a mixing console, soundcard, pre-amp or powered speaker. PRO-BT5 is powered via a commonly-available external 5VDC PSU (not supplied).

UNiKA PRO’s specially-selected audio isolation transformer and built-in 16 bit / 44.1kHz Digital Audio Converter (DAC) ensure an exceptionally musical sound at CD audio quality.

PRO-BT5 features a high-quality headphone monitor output compatible with a wide range of headphones.

UNiKA PRO-BT5 is equally at home on stage or in the studio with a rugged steel casing, full-length anti-slip mat and recessed connectors.

SYNC — illuminates during the Bluetooth pairing process

MONITOR OUT — Mini TRS headphone jack compatible with 16 Ohm to 600 Ohm headphones.

MONITOR LEVEL — Headphone rotary volume control.

ISO OUT L and R — XLRs connect the transformer-balanced low impedance outputs to the inputs of a mixing console, sound card, pre-amp, powered speaker or other audio device using a standard XLR cable.

GND/LIFT — Breaks the ground at the output of both transformers to eliminate hum and noise caused by ground loops.

POWER ACTIVE LED — illuminates when PRO-BT5 is powered from a user-supplied external 5VDC USB Type-C PSU or a compatible USB connector on a Laptop or Desktop PC.

Rugged Steel Chassis —with Anti-Scratch Paint.

Anti-Slip Mat — full-length, flexible plastic pad cushions and stabilises the PRO-BT5
